Product Detail

Introducing our brand new Carbon Steering Limiters for the XRAY X4!

Steering lock is a critical tuning option in touring car, and depending on the size of track and amount of grip, it something that professional drivers tend to adjust regularly. Simply reducing the Dual Rate on your transmitter is not sufficient to reducing your steering lock. Reducing the Dual Rate simply adds play and chatter to the wheels, as now the whole rack is being supported by the servo, inducing play into the system.

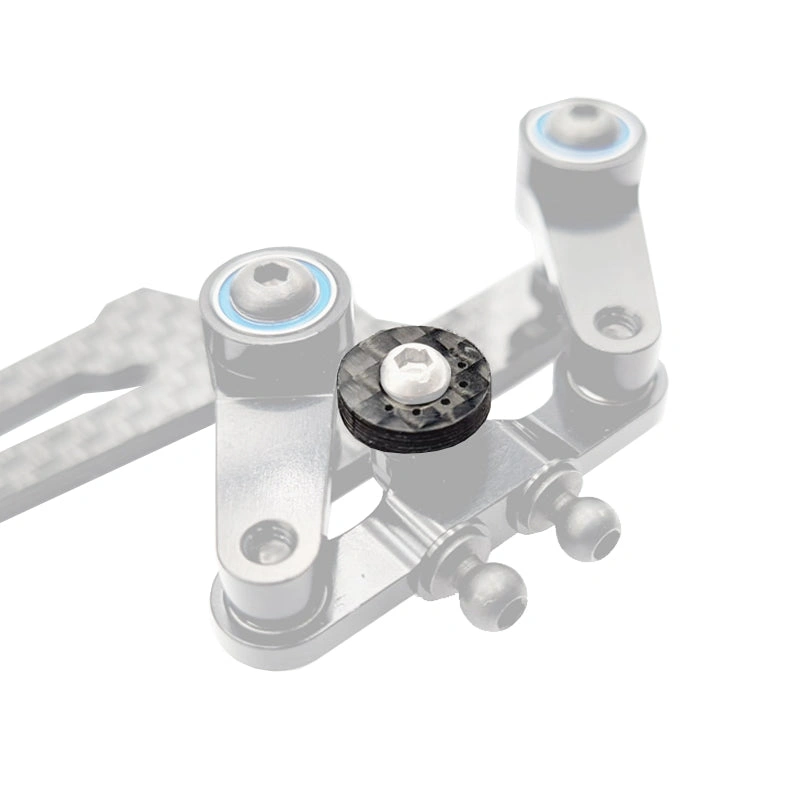

We have developed the ultimate solution for the XRAY X4 platform. The set includes 6 different sized limiters in 0.5mm diameter increments which offer a large range of steering lock possibilities from maximum lock to around 28 degrees, to 20 degrees. Simply unscrew the screw underneath the centre ball stud, and install the desired stopper. The bigger the limiter, the less lock and visa-versa. Once installed, reduce your transmitter EPA until the limiter has just a minimal amount of play against the rack (but not binding), and you're good to go!

CNC Machined from 2mm thick 3K Carbon Fibre, these are built to last and will not break or chip in crashes. They are also extremely lightweight coming in at only 0.2 grams for the biggest sized limiter!

Features

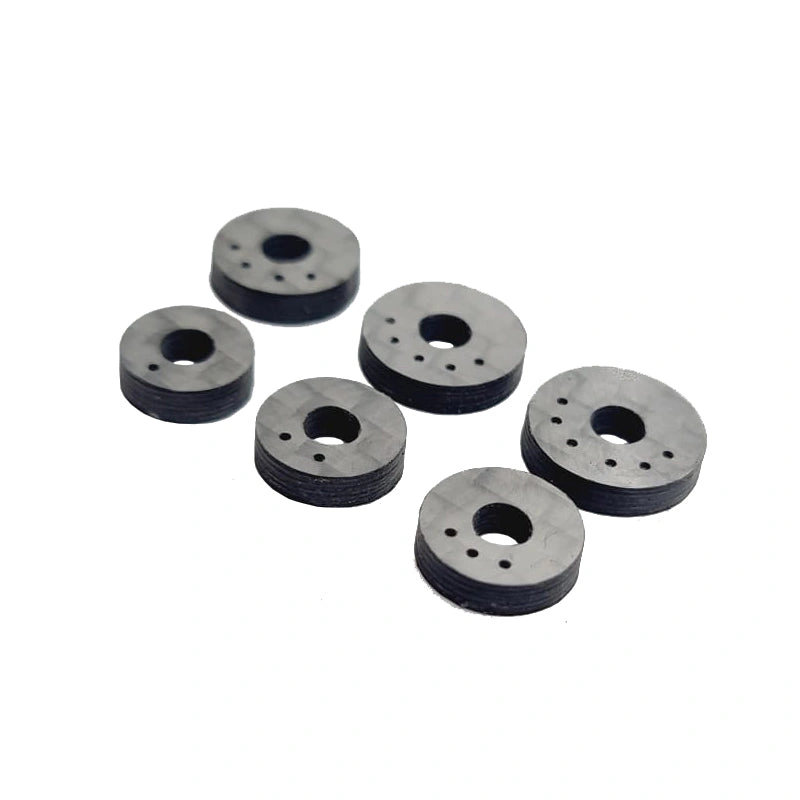

• 6 Sizes for 6 easy lock settings ranging from 20-28deg
• Indicative dots help identify the size
• CNC Machined in Australia from High Quality 2mm thick 3K Carbon Fibre

Key:

• 1 Dot: 7.5mm (Maximum Steering Angle)
• 2 Dots: 8mm
• 3 Dots: 8.5mm
• 4 Dots: 9mm
• 5 Dots: 9.5mm
• 6 Dots: 10mm ( Minimum Steering Angle)
